Adding Dynamic Rows in ASP.NET Gridview

To get started, let’s grab a GridView control from the Visual Studio Toolbox and put it in the Web Form. The mark up would look something like this:


Source Code:-
<%@ Page Language="C#" AutoEventWireup="true" CodeFile="Default16.aspx.cs" Inherits="Default16" %>

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">

<html xmlns="http://www.w3.org/1999/xhtml">
<head runat="server">
    <title>Untitled Page</title>
</head>
<body>
    <form id="form1" runat="server">
    <div>
        <asp:gridview ID="Gridview1" runat="server" ShowFooter="true" AutoGenerateColumns="false">
            <Columns>
            <asp:BoundField DataField="RowNumber" HeaderText="Row Number" />
            <asp:TemplateField HeaderText="Header 1">
                <ItemTemplate>
                    <asp:TextBox ID="TextBox1" runat="server"></asp:TextBox>
                </ItemTemplate>
            </asp:TemplateField>
            <asp:TemplateField HeaderText="Header 2">
                <ItemTemplate>
                    <asp:TextBox ID="TextBox2" runat="server"></asp:TextBox>
                </ItemTemplate>
            </asp:TemplateField>
            <asp:TemplateField HeaderText="Header 3">
                <ItemTemplate>
                     <asp:TextBox ID="TextBox3" runat="server"></asp:TextBox>
                </ItemTemplate>
                <FooterStyle HorizontalAlign="Right" />
                <FooterTemplate>
                 <asp:Button ID="ButtonAdd" runat="server" Text="Add New Row"
                        onclick="ButtonAdd_Click" />
                </FooterTemplate>
            </asp:TemplateField>
            </Columns>
        </asp:gridview>
    </div>
    </form>
</body>
</html>



Now let’s switch to the Code behind part of the web form.

As you may know, the GridView control will not show in the page once there is no data associated on it. So the first thing we need here is to set an initial data in the GridView Control. To do this, we can use a DataTable for binding our GridView.

Here’s the code block below:

using System;
using System.Collections;
using System.Configuration;
using System.Data;
using System.Linq;
using System.Web;
using System.Web.Security;
using System.Web.UI;
using System.Web.UI.HtmlControls;
using System.Web.UI.WebControls;
using System.Web.UI.WebControls.WebParts;
using System.Xml.Linq;

public partial class Default16 : System.Web.UI.Page
{
    private void SetInitialRow()
    {
        DataTable dt = new DataTable();
        DataRow dr = null;
        dt.Columns.Add(new DataColumn("RowNumber", typeof(string)));
        dt.Columns.Add(new DataColumn("Column1", typeof(string)));
        dt.Columns.Add(new DataColumn("Column2", typeof(string)));
        dt.Columns.Add(new DataColumn("Column3", typeof(string)));
        dr = dt.NewRow();
        dr["RowNumber"] = 1;
        dr["Column1"] = string.Empty;
        dr["Column2"] = string.Empty;
        dr["Column3"] = string.Empty;
        dt.Rows.Add(dr);

        //Store the DataTable in ViewState
        ViewState["CurrentTable"] = dt;

        Gridview1.DataSource = dt;
        Gridview1.DataBind();
    }
    private void AddNewRowToGrid()
    {
        int rowIndex = 0;

        if (ViewState["CurrentTable"] != null)
        {
            DataTable dtCurrentTable = (DataTable)ViewState["CurrentTable"];
            DataRow drCurrentRow = null;
            if (dtCurrentTable.Rows.Count > 0)
            {
                for (int i = 1; i <= dtCurrentTable.Rows.Count; i++)
                {
                    //extract the TextBox values
                    TextBox box1 = (TextBox)Gridview1.Rows[rowIndex].Cells[1].FindControl("TextBox1");
                    TextBox box2 = (TextBox)Gridview1.Rows[rowIndex].Cells[2].FindControl("TextBox2");
                    TextBox box3 = (TextBox)Gridview1.Rows[rowIndex].Cells[3].FindControl("TextBox3");

                    drCurrentRow = dtCurrentTable.NewRow();
                    drCurrentRow["RowNumber"] = i + 1;

                    dtCurrentTable.Rows[i - 1]["Column1"] = box1.Text;
                    dtCurrentTable.Rows[i - 1]["Column2"] = box2.Text;
                    dtCurrentTable.Rows[i - 1]["Column3"] = box3.Text;

                    rowIndex++;
                }
                dtCurrentTable.Rows.Add(drCurrentRow);
                ViewState["CurrentTable"] = dtCurrentTable;

                Gridview1.DataSource = dtCurrentTable;
                Gridview1.DataBind();
            }
        }
        else
        {
            Response.Write("ViewState is null");
        }

        //Set Previous Data on Postbacks
        SetPreviousData();
    }
    private void SetPreviousData()
    {
        int rowIndex = 0;
        if (ViewState["CurrentTable"] != null)
        {
            DataTable dt = (DataTable)ViewState["CurrentTable"];
            if (dt.Rows.Count > 0)
            {
                for (int i = 0; i < dt.Rows.Count; i++)
                {
                    TextBox box1 = (TextBox)Gridview1.Rows[rowIndex].Cells[1].FindControl("TextBox1");
                    TextBox box2 = (TextBox)Gridview1.Rows[rowIndex].Cells[2].FindControl("TextBox2");
                    TextBox box3 = (TextBox)Gridview1.Rows[rowIndex].Cells[3].FindControl("TextBox3");

                    box1.Text = dt.Rows[i]["Column1"].ToString();
                    box2.Text = dt.Rows[i]["Column2"].ToString();
                    box3.Text = dt.Rows[i]["Column3"].ToString();

                    rowIndex++;
                }
            }
        }
    }
    protected void Page_Load(object sender, EventArgs e)
    {
        if (!Page.IsPostBack)
        {
            SetInitialRow();
        }
    }
    protected void ButtonAdd_Click(object sender, EventArgs e)
    {
        AddNewRowToGrid();
    }
}


Page View:-

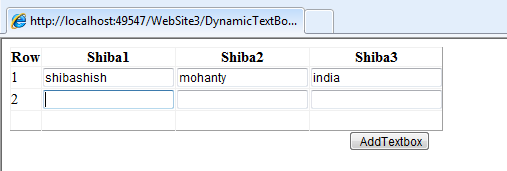

Running Mode:-





Adding Dynamic Textbox Value From GridView to DataBase

 Download the sample source code using the link below
